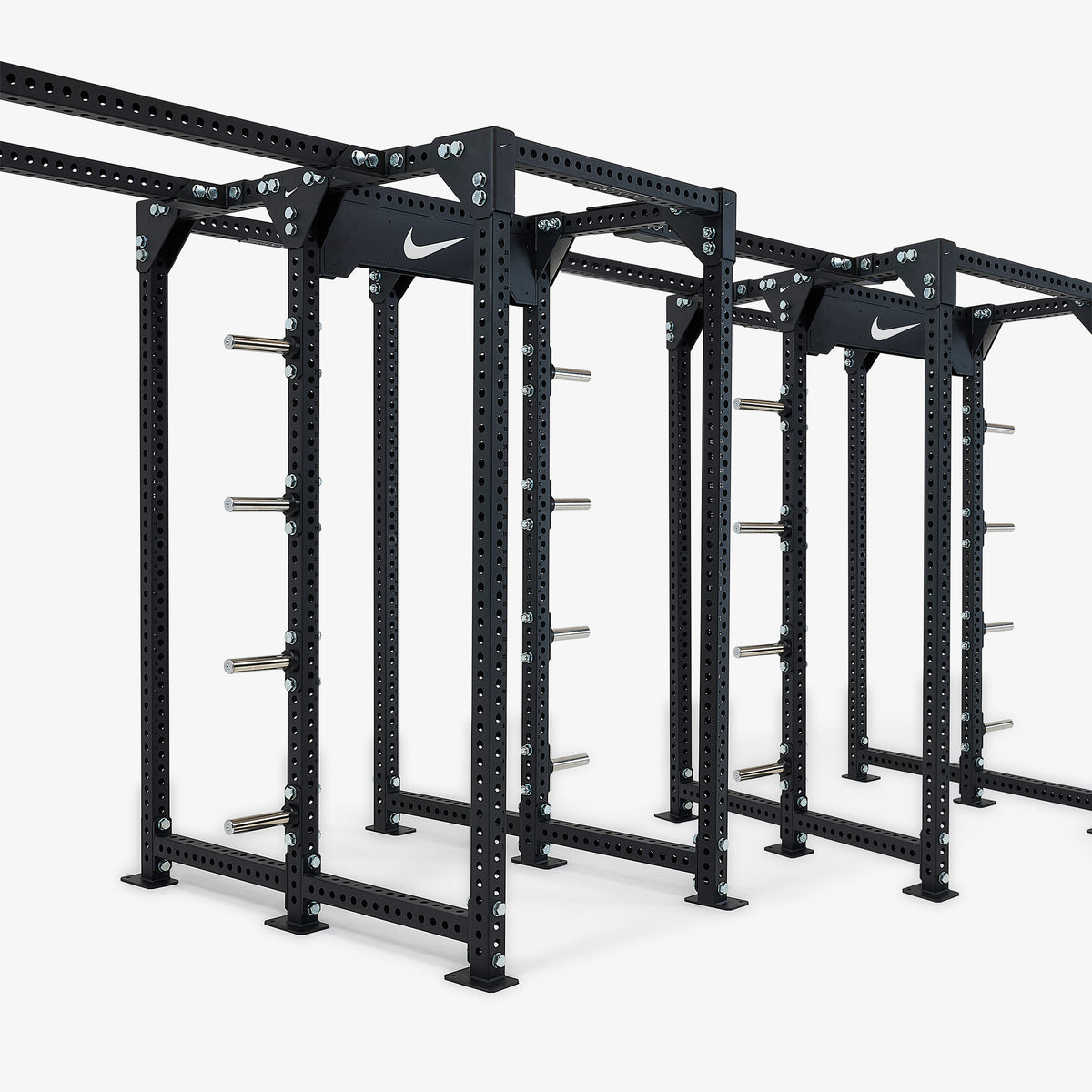

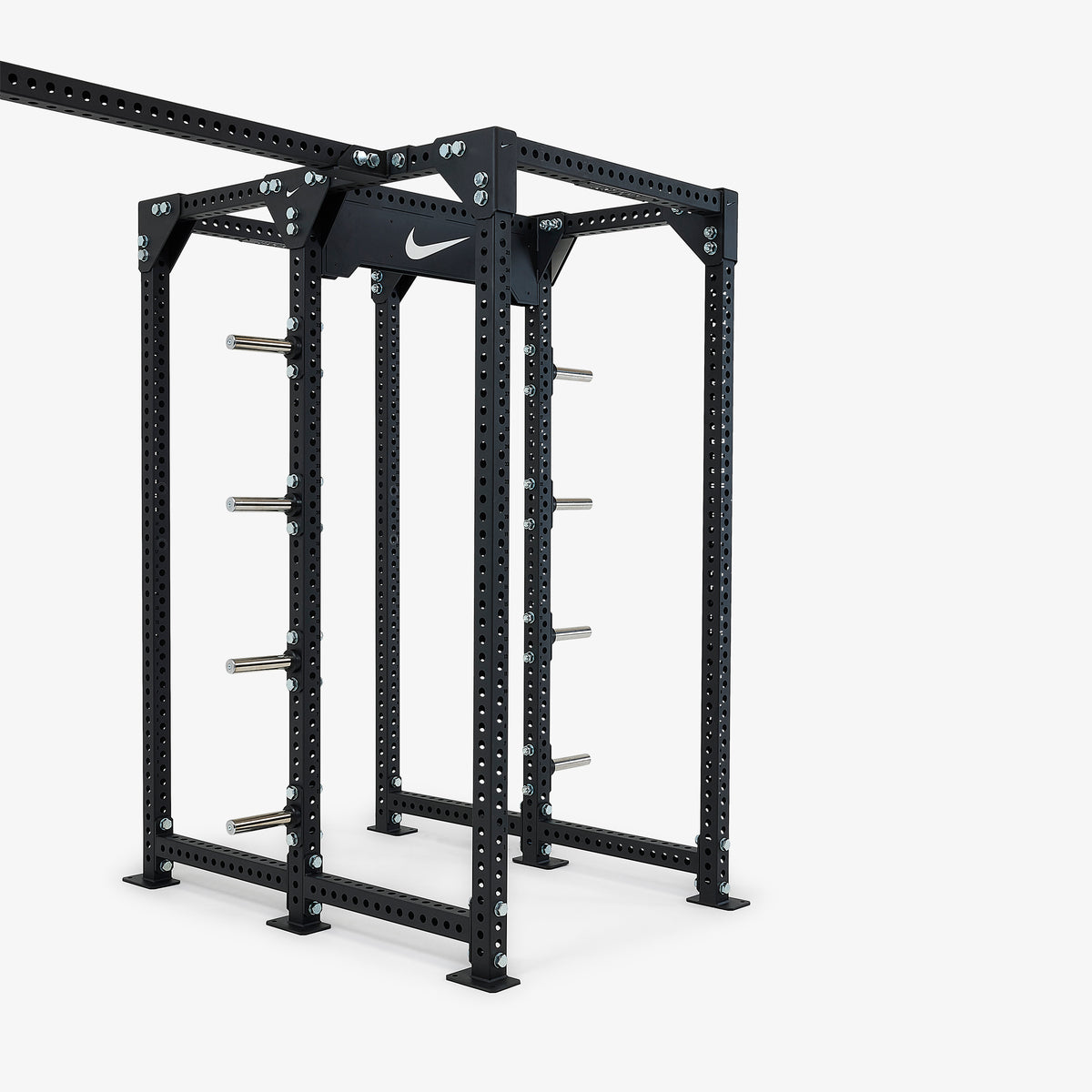

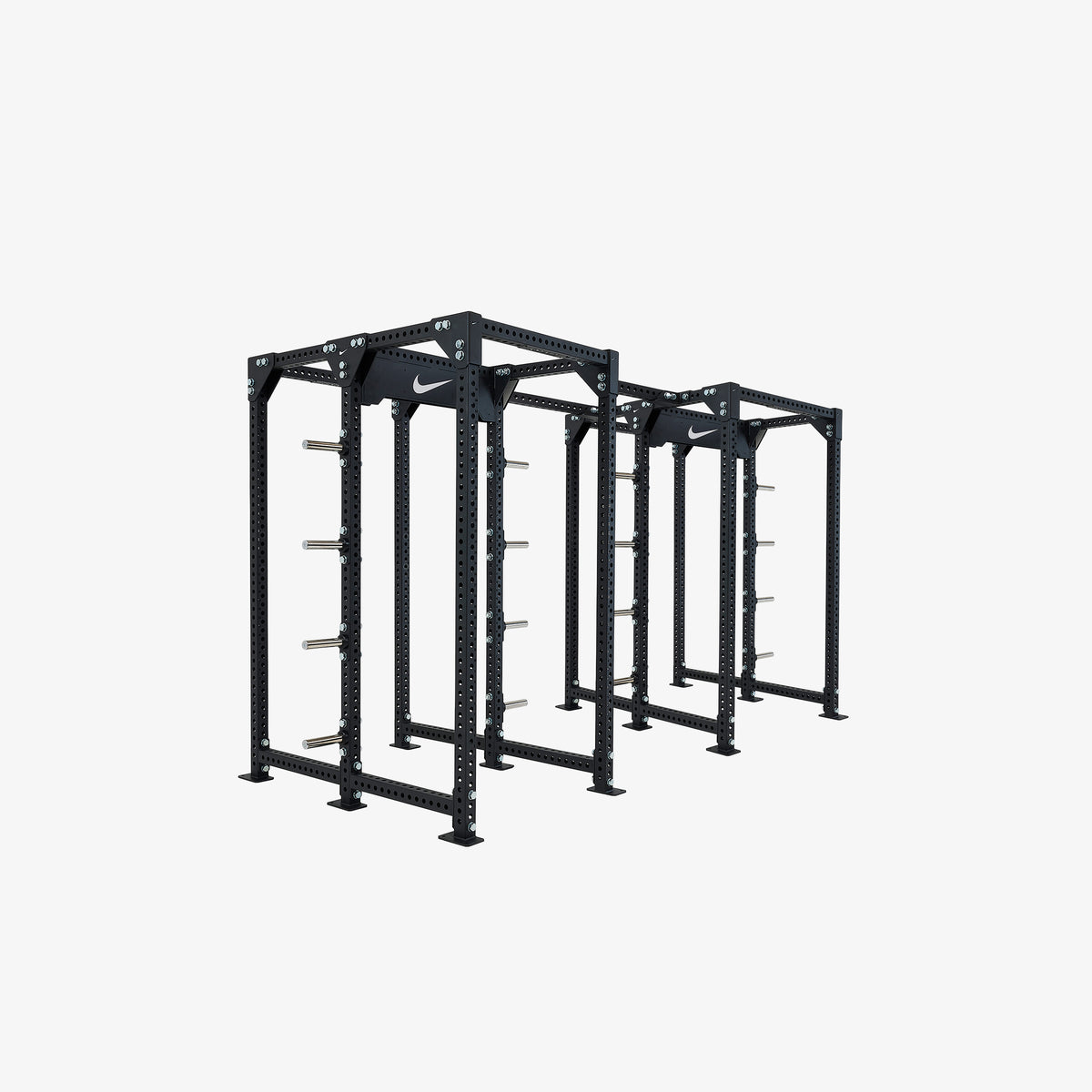

A facility should work like one system, not a row of separate stations. Nike Strength Pro Rack Bridges tie racks together in line and turn the space between them into training capacity. Three spans set the distance between racks — 6, 7 or 8 feet — so a floor can be laid out in simple increments instead of custom measurements. Each bridge uses the same 3x3-inch 11-gauge steel and 1-inch hole pattern as the uprights, so all three Nike Strength Pro Pull-Up Bars plug straight in along the front or back and bands anchor anywhere along the span. Low-profile drop-in mounts sit flush with the top of the racks, adding no height and keeping hardware out of the athlete’s way.

Nike Strength Pro Rack Bridge

Nike Strength Pro Rack Bridge

Regular price $275.00
Regular price Sale price $0.00
Sale Sold Out
Size: Short (6 ft)
Select Popular Add Ons

Description

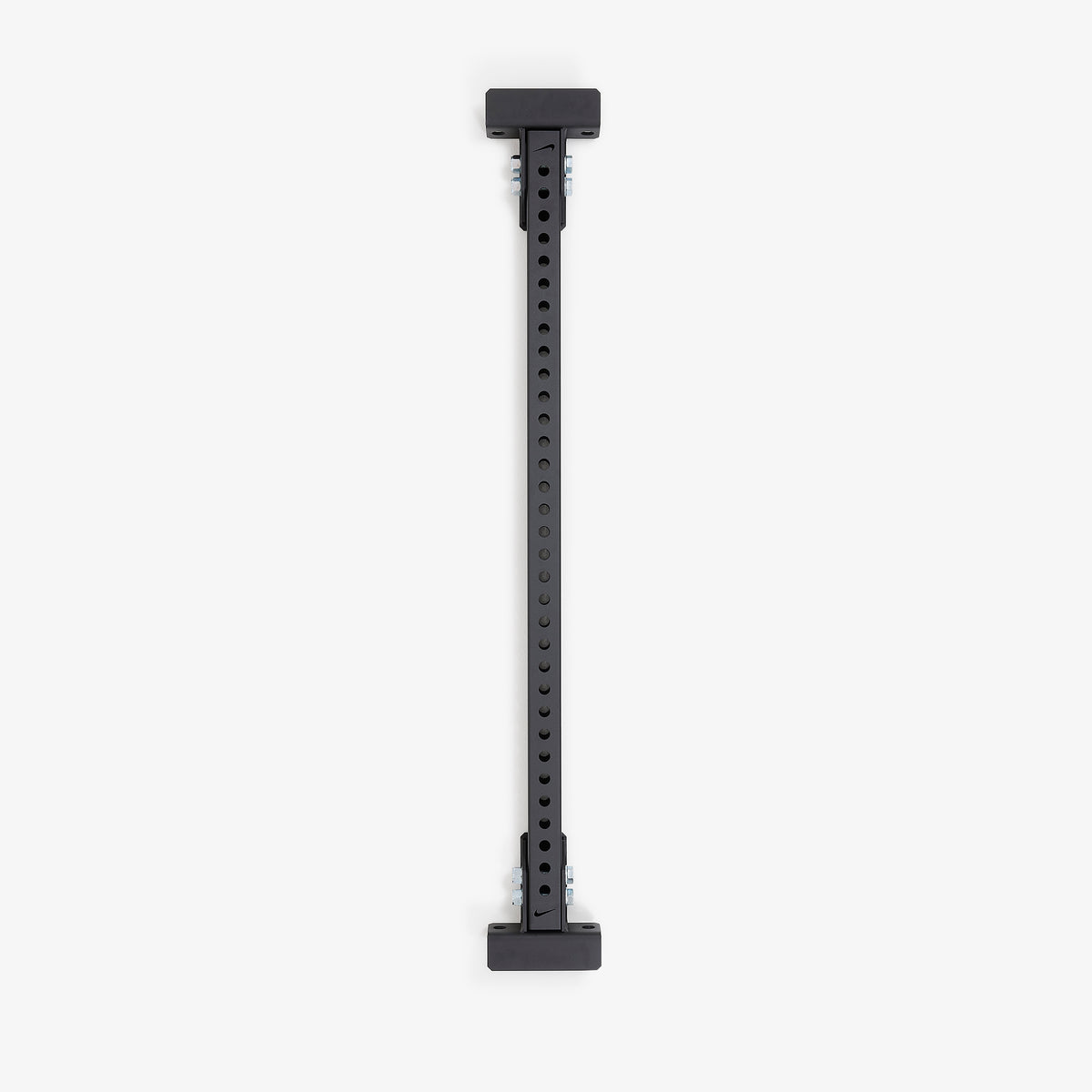

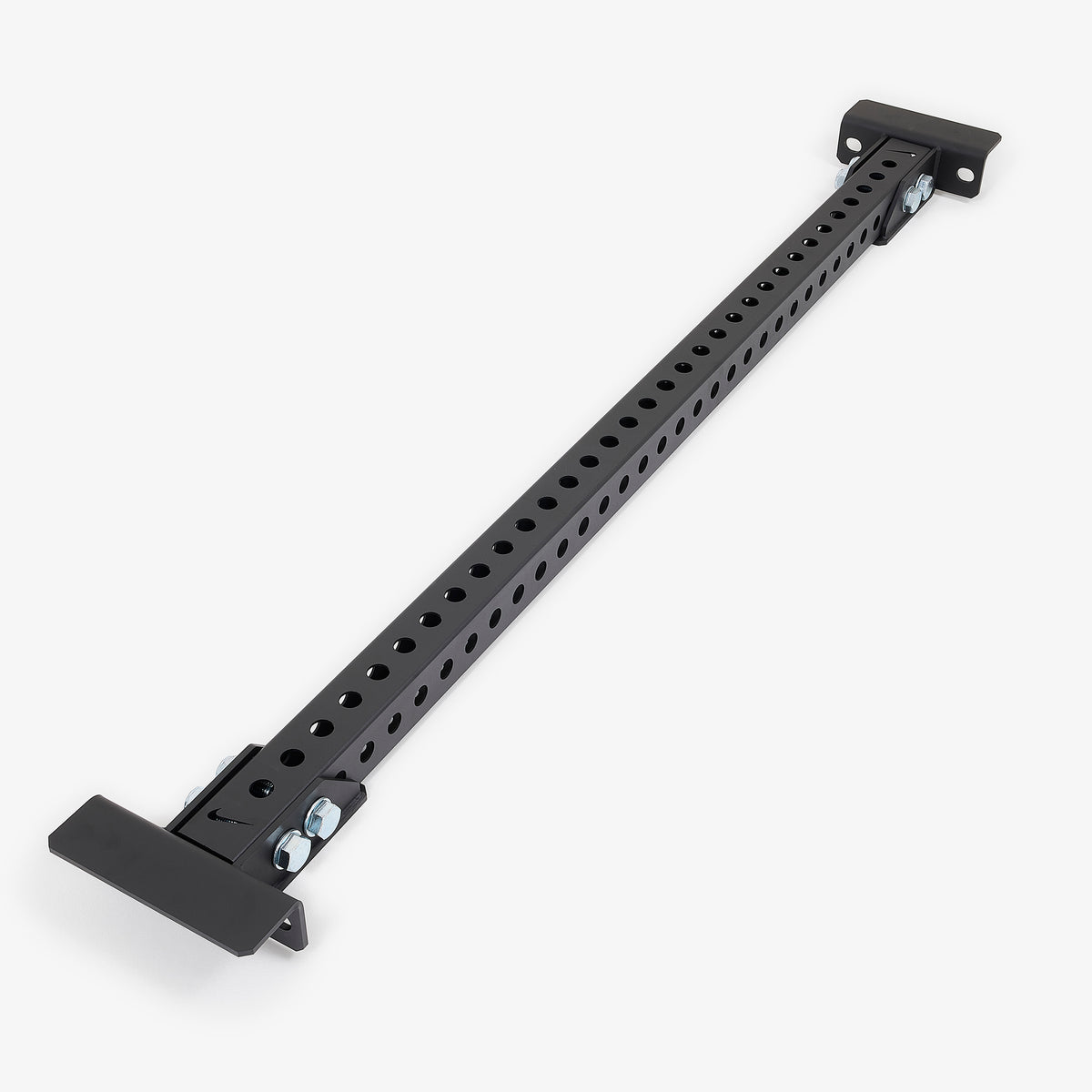

A facility should work like one system, not a row of separate stations. Nike Strength Pro Rack Bridges tie racks together in line and turn the space between them into training capacity. Three spans set the distance between racks — 6, 7 or 8 feet — so a floor can be laid out in simple increments instead of custom measurements. Each bridge uses the same 3x3-inch 11-gauge steel and 1-inch hole pattern as the uprights, so all three Nike Strength Pro Pull-Up Bars plug straight in along the front or back and bands anchor anywhere along the span. Low-profile drop-in mounts sit flush with the top of the racks, adding no height and keeping hardware out of the athlete’s way.

Features

  • Three Spans: Three spans — 6ft, 7ft and 8ft between racks — that make laying out multiple racks quick and simple.
  • Pull-Up Bar Compatible: Same construction as the rack uprights, so all three Nike Strength Pro Pull-Up Bars plug and play along the front or back.

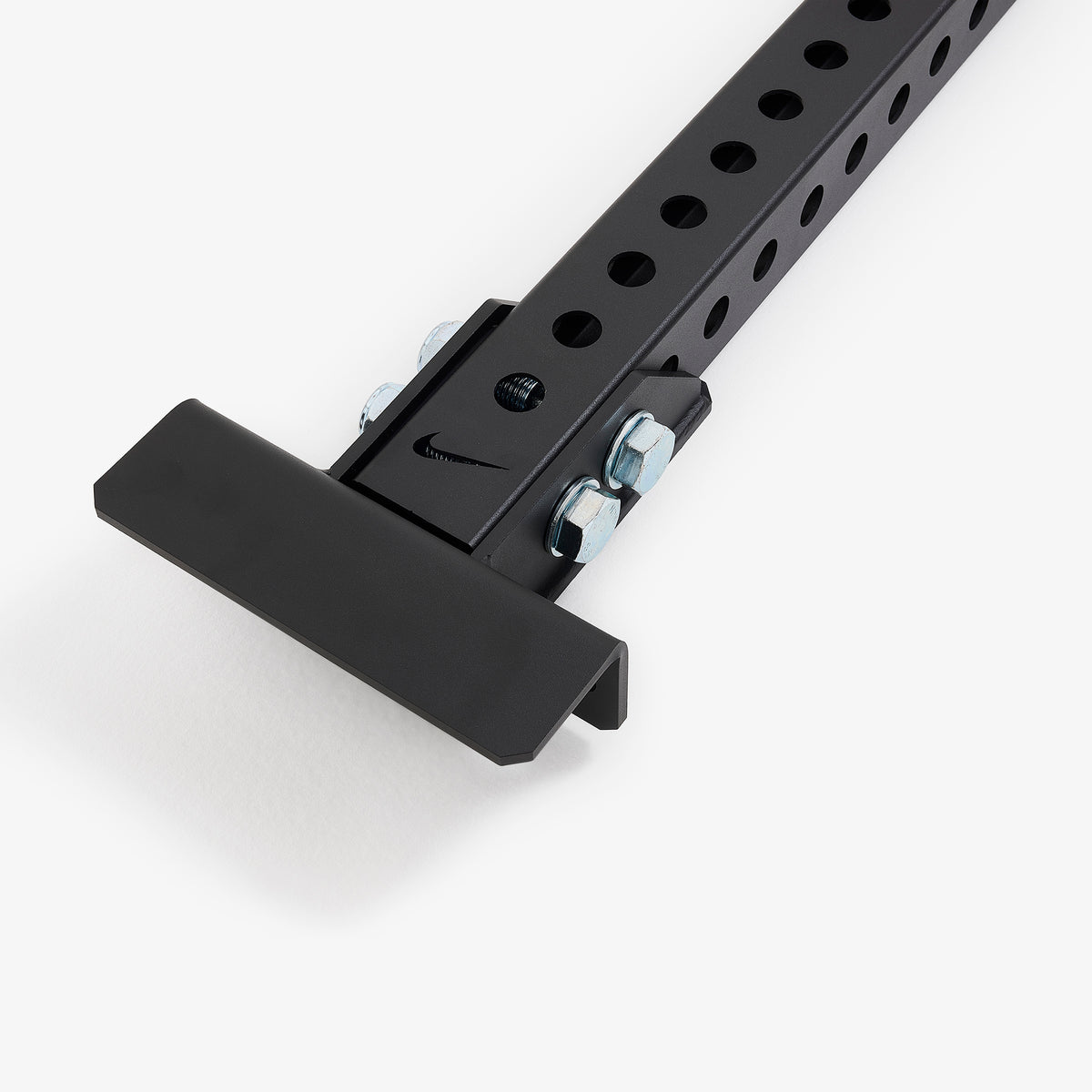

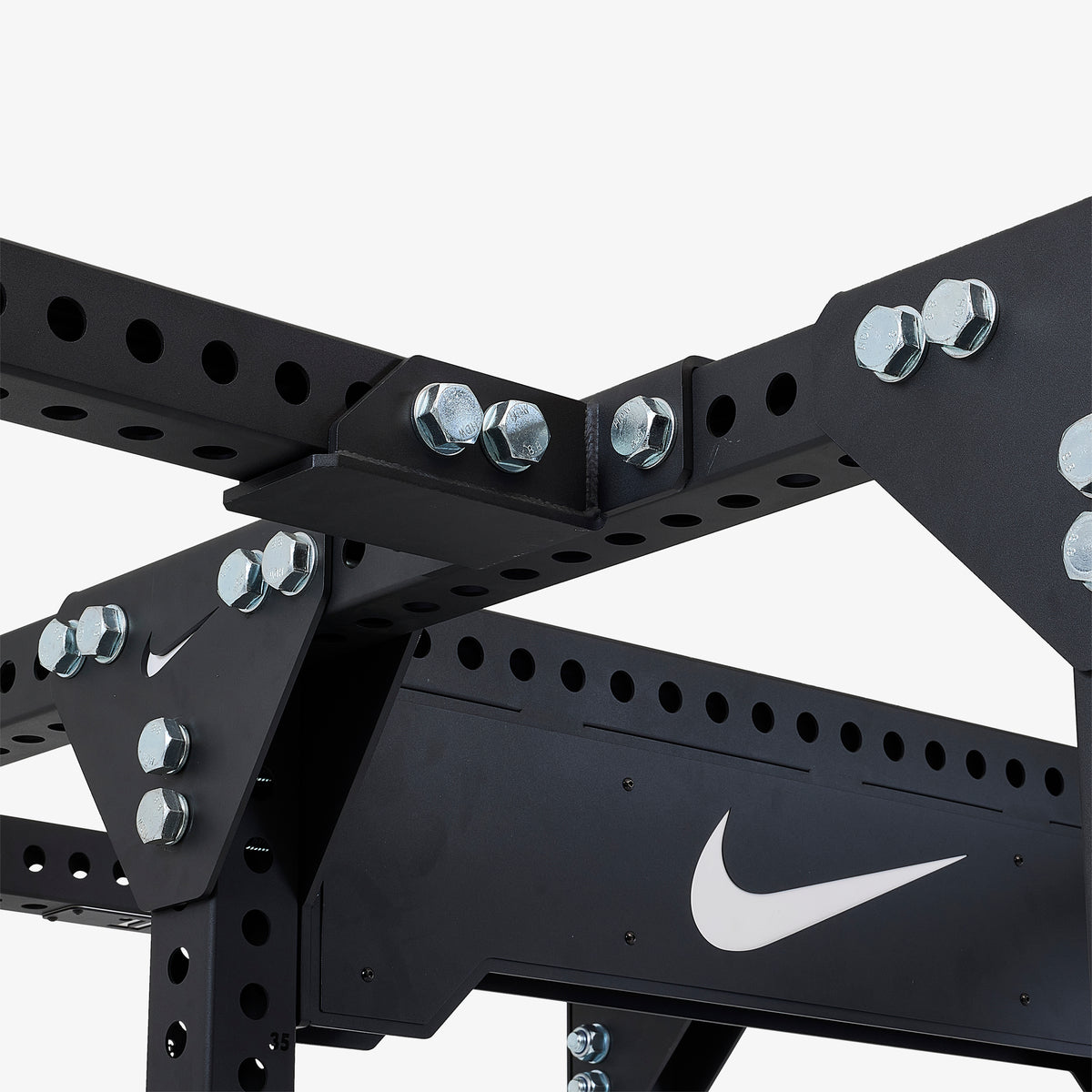

  • Low-Profile Drop-In Mounts: Low-profile drop-in mounts keep hardware away from the athlete and add no height to the racks.
  • Band Anchoring: Additional band anchoring anywhere along the span for extra training stations.

Product Specs

  • Mount Hole Spacing: 8" (203.2mm)

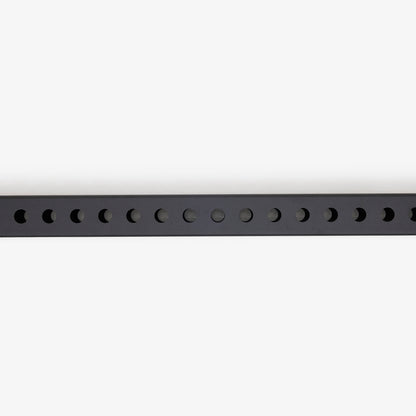

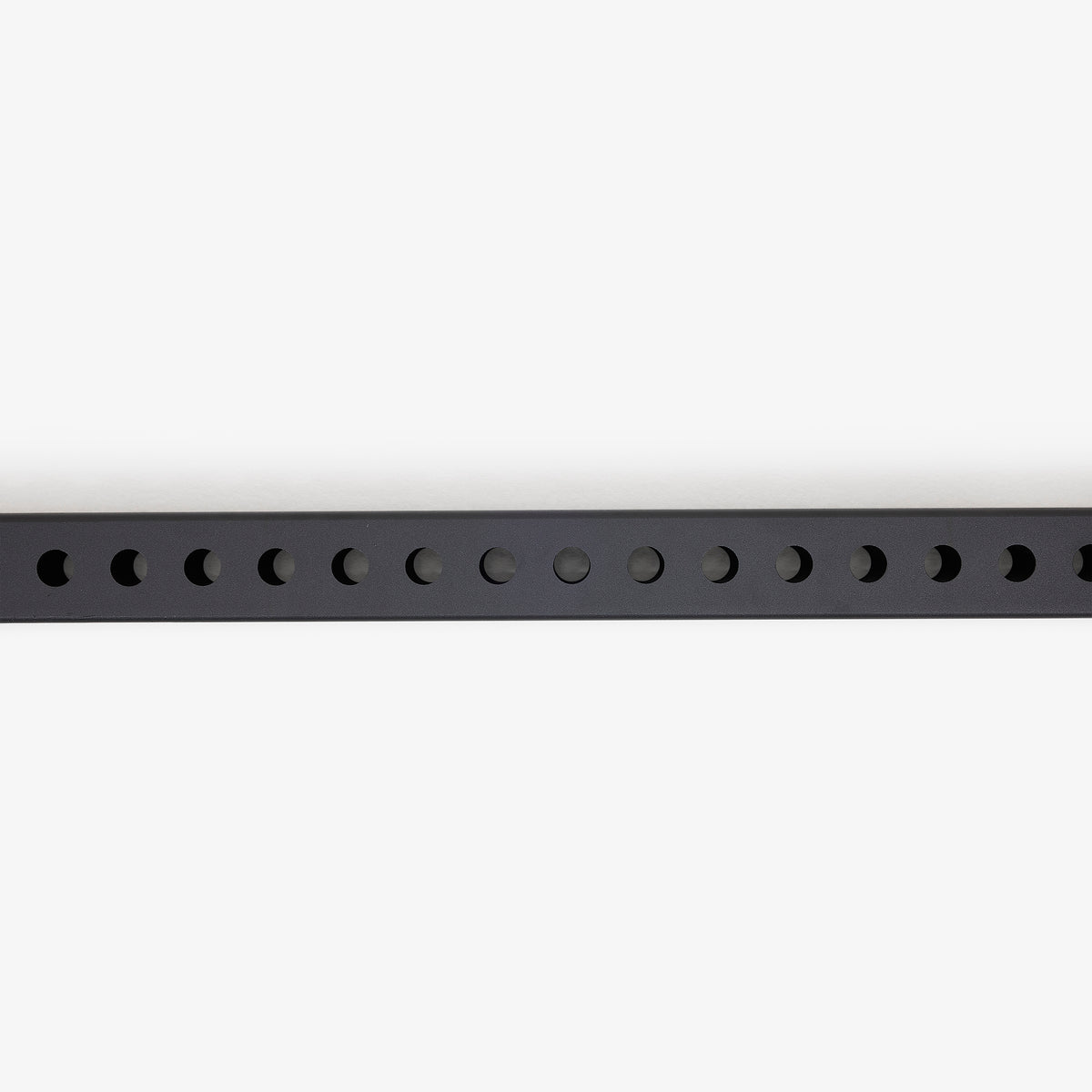

  • Hole Diameter: 1" (25.4mm)
  • Hole Spacing on Center: 2" (50.8mm)
  • Tubing: 3" (76.2mm) x 3" (76.2mm)
  • Attachment Compatibility: compatible with all Nike Strength Pro Racks
  • Material: Powder coated steel
  • Weight Capacity: 900lb
  • Short (6ft) Weight: 57.3 lb (26.01 kg)
  • Standard (7ft) Weight: 61.26 lb (27.79 kg)
  • Long (8ft) Weight: 65.6 lb (29.78 kg)

Dimensions

  • Short (6ft) Overall Dimensions LxWxH: 78" (1981.2mm) x 10.17" (258.22mm) x 3.79" (96.2mm)
  • Short (6ft) Space Between Racks: 72" (1828.8mm)

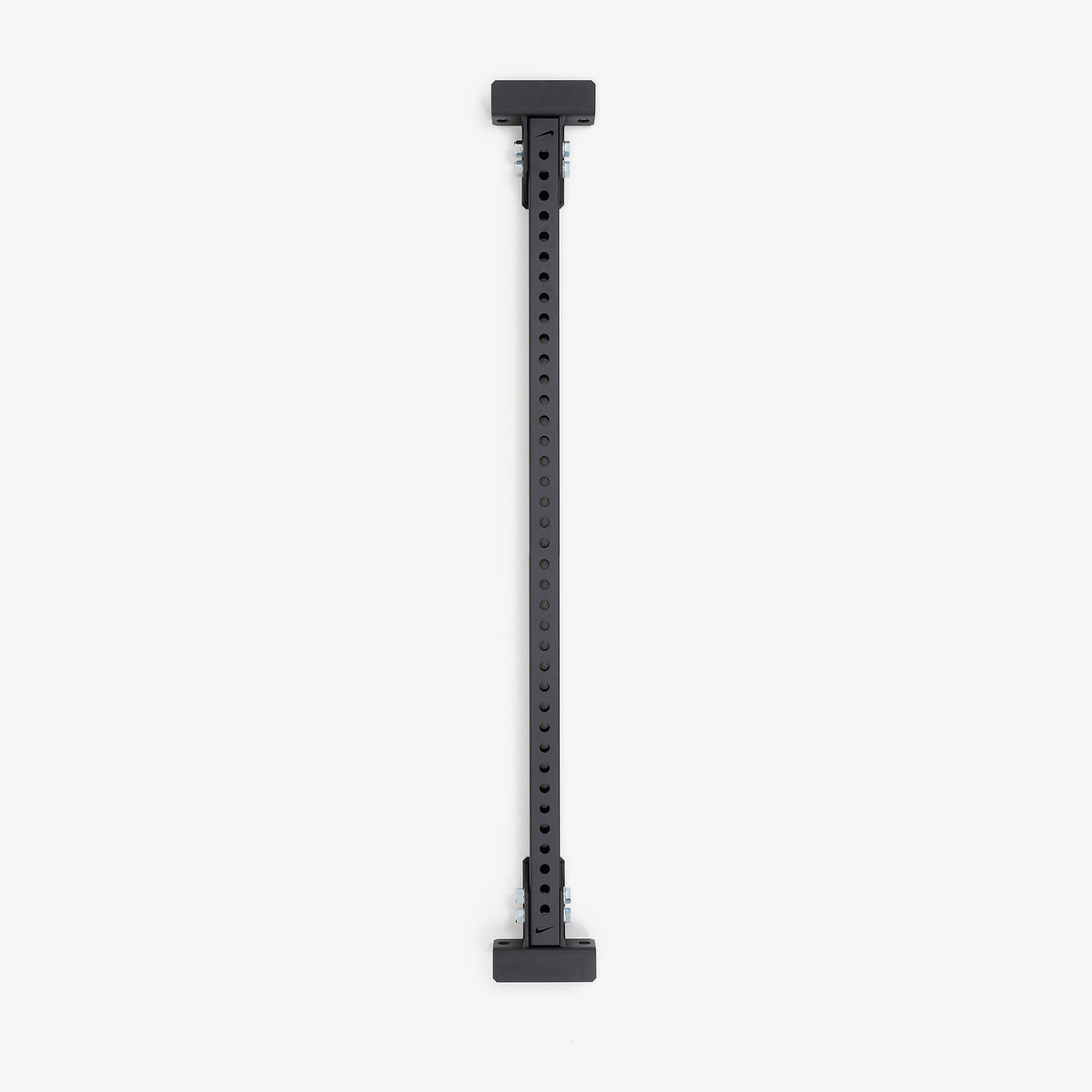

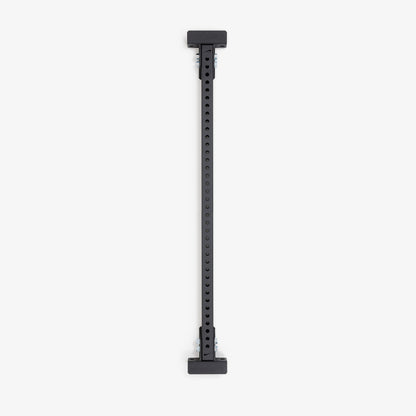

  • Standard (7ft) Overall Dimensions LxWxH: 90" (2286mm) x 10.17" (258.22mm) x 3.79" (96.2mm)
  • Standard (7ft) Space Between Racks: 84" (2133.6mm)

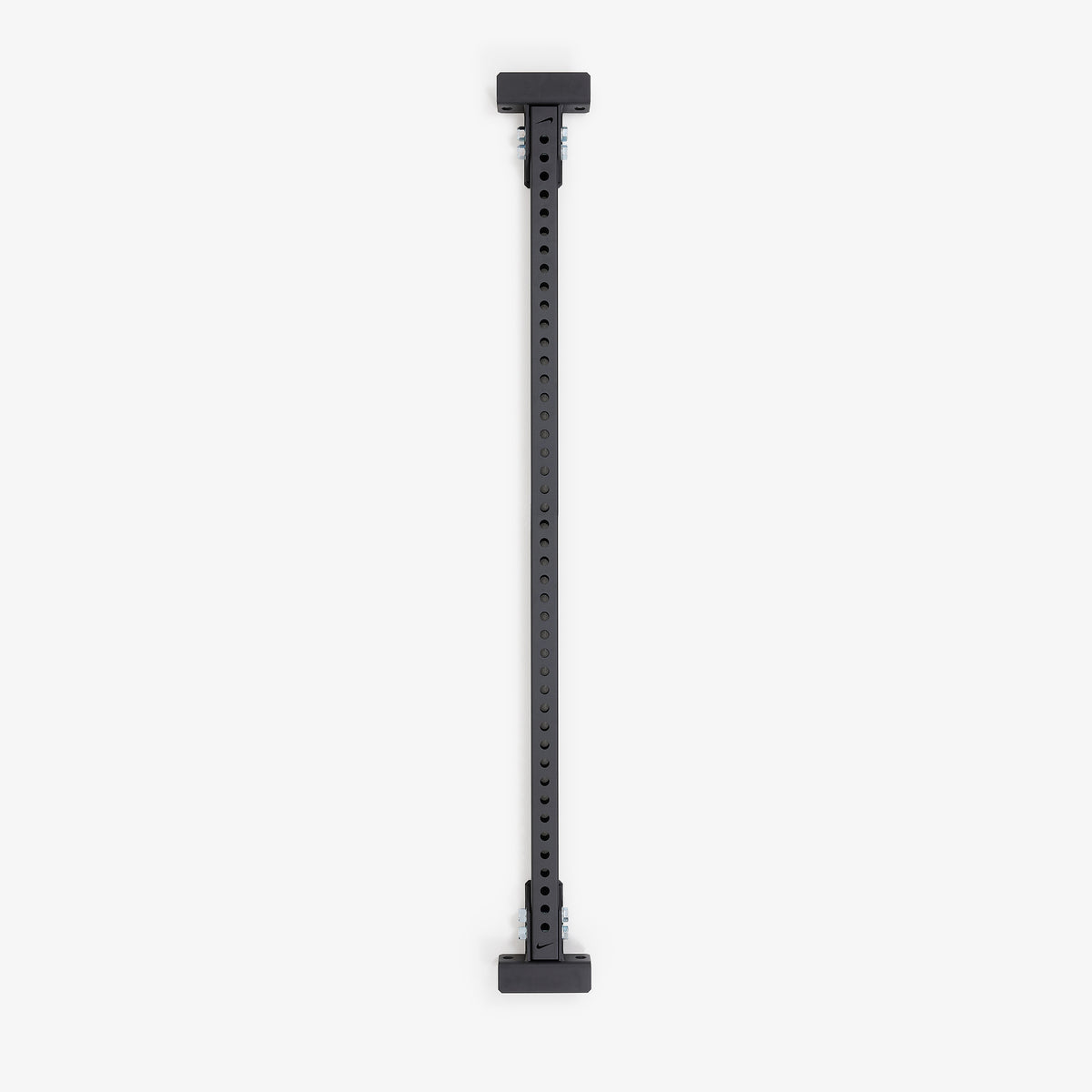

  • Long (8ft) Overall Dimensions LxWxH: 102" (2590.8mm) x 10.17" (258.22mm) x 3.79" (96.2mm)
  • Long (8ft) Space Between Racks: 96" (2438.4mm)
